Tekwarm Insulated Loft Deck
Unlock Enhanced Loft Storage and Insulation with Tekwarm Insulated Loft Deck
Tekwarm Insulated Loft Deck is a sophisticated solution designed to transform your loft into a practical storage area or safe access walkway, all while maintaining exceptional insulation performance. This innovative product combines the strength of OSB board with the high-performance thermal properties of PIR insulation, making it perfect for insulating roof spaces efficiently and effectively.
Key Features:
- High-Performance Insulation: With a thermal conductivity of 0.022 W/mk, Tekwarm Insulated Loft Deck ensures your loft remains well-insulated, contributing to overall energy efficiency.

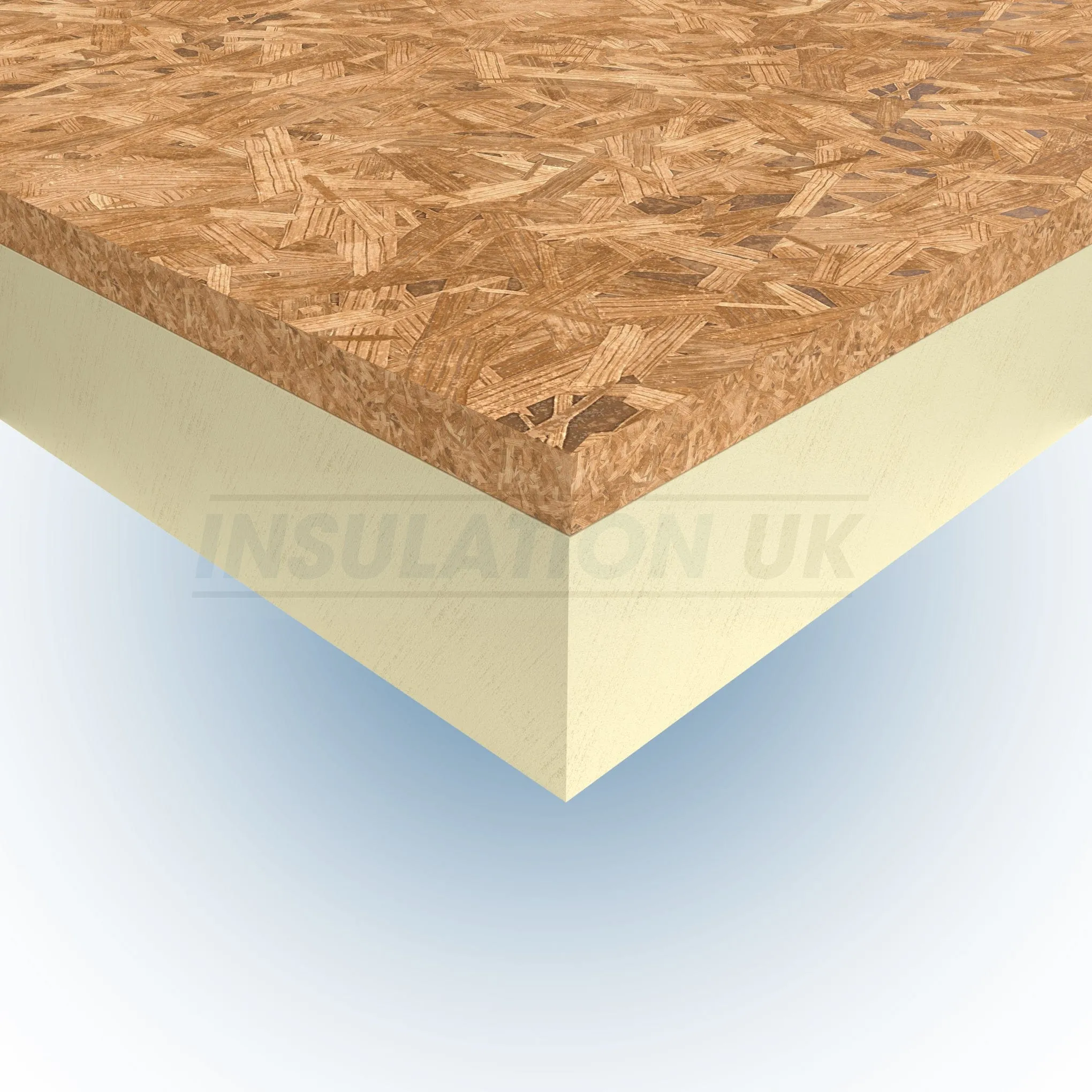

- Durable and Practical: The 8mm OSB bonded to PIR insulation provides a sturdy platform for storage or access, supporting light loads and limited foot traffic.
- Easy Installation: Designed for straightforward installation, the boards can be securely fixed into supporting joists, providing a stable and reliable loft decking solution.
- Environmental Responsibility: Manufactured with zero ODP and a GWP of less than 5, aligning with sustainability goals.
Technical Specifications
| Specification | Details |
|---|---|
| Insulation Thickness (mm) | 100 |
| R Value (M²K/W) | 4.02 |
| Approx Weight (kg per board) | 5.92 |
| Nominal Overall Thickness (mm) | 108 |
| Material | PIR insulation with 8mm OSB board |
| Thermal Conductivity | 0.022 W/mk |
| Board Size | 1200mm x 600mm |
| Coverage per Board | 0.72m² |
| Fire Rating | OSB: Class D or E combustibility |
| Environmental Impact | GWP <5, Zero ODP |
Installation & Usage

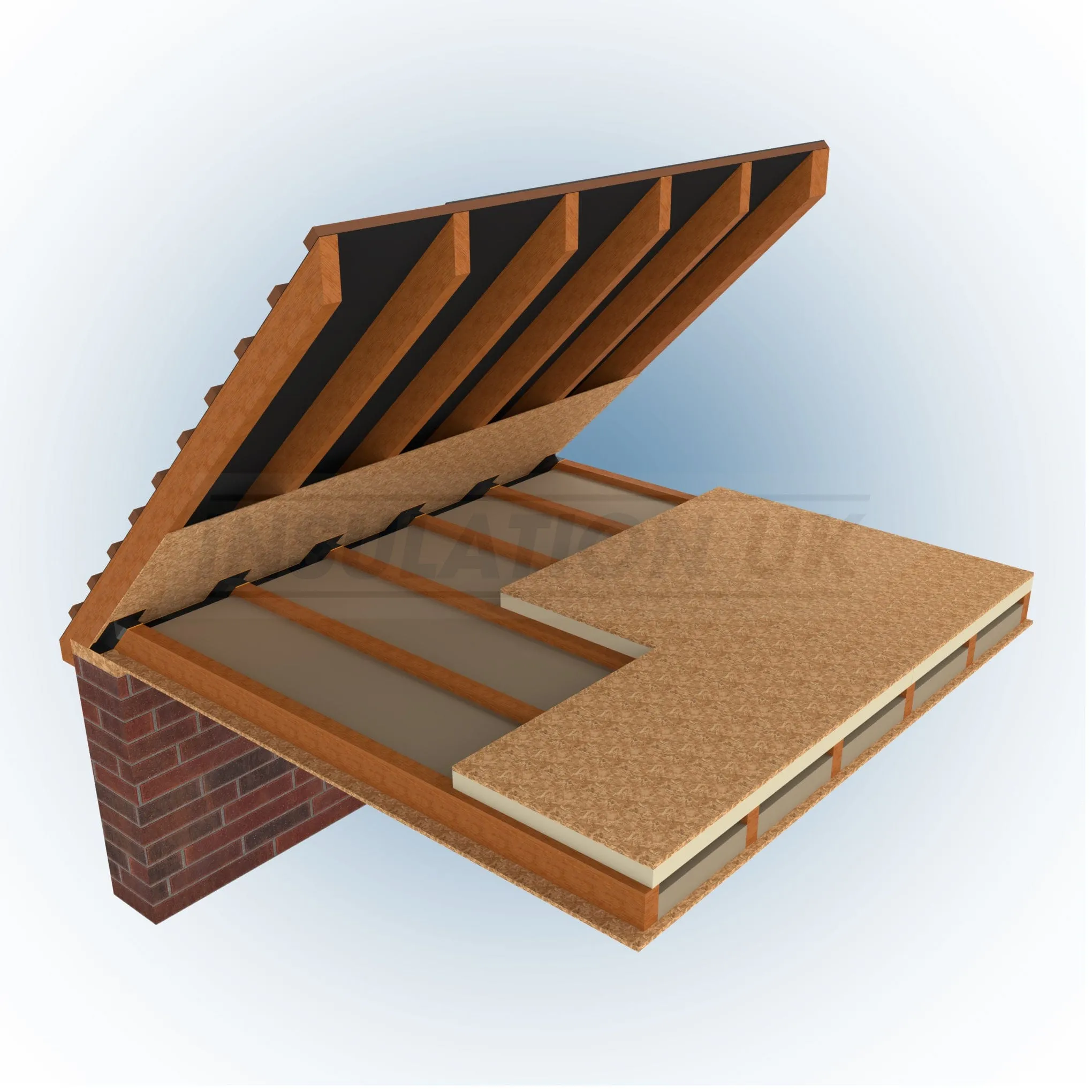

Tekwarm Insulated Loft Deck boards are specifically designed for use in insulated roof spaces, offering a reliable and efficient way to add storage or access. The boards should be laid transversally to the joists and secured with screws, ensuring a minimum of 30mm embedment into the supporting joist. It's crucial to consider the load capacity of the ceiling joists and consult with an engineer for uses beyond light loads and limited traffic.
