Tekwarm PIR Insulated Plasterboard
Unleash Superior Insulation with Tekwarm PIR Insulated Plasterboard

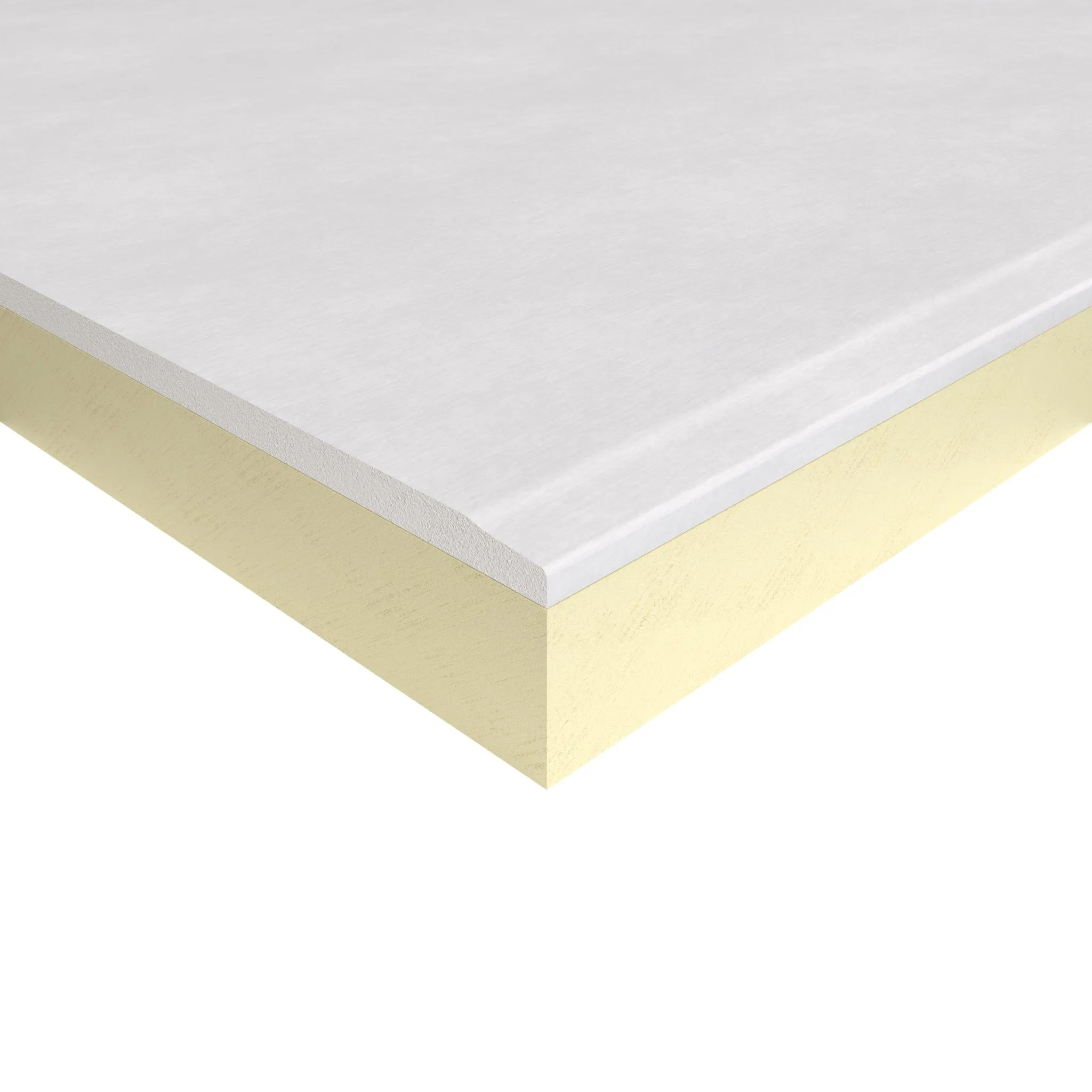

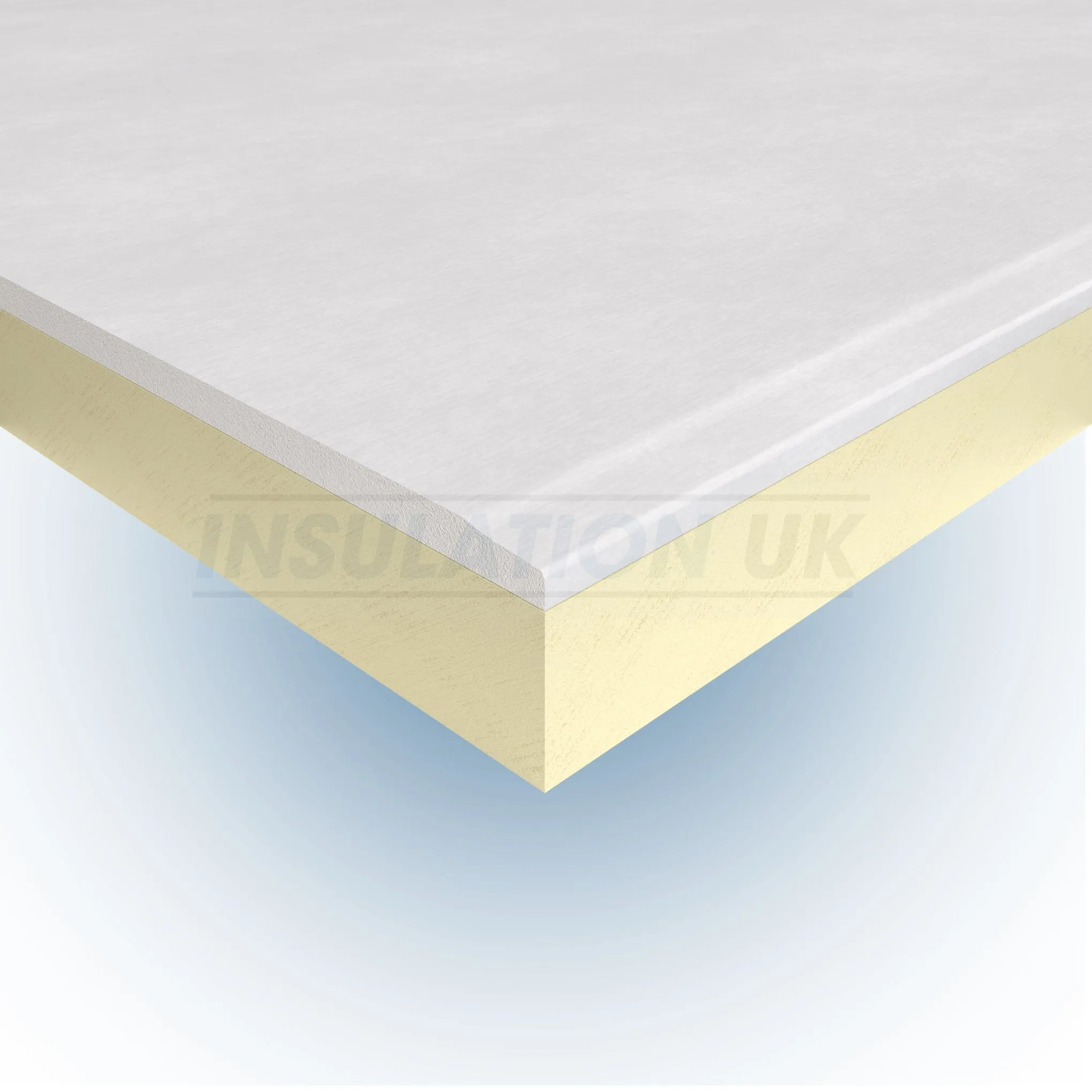

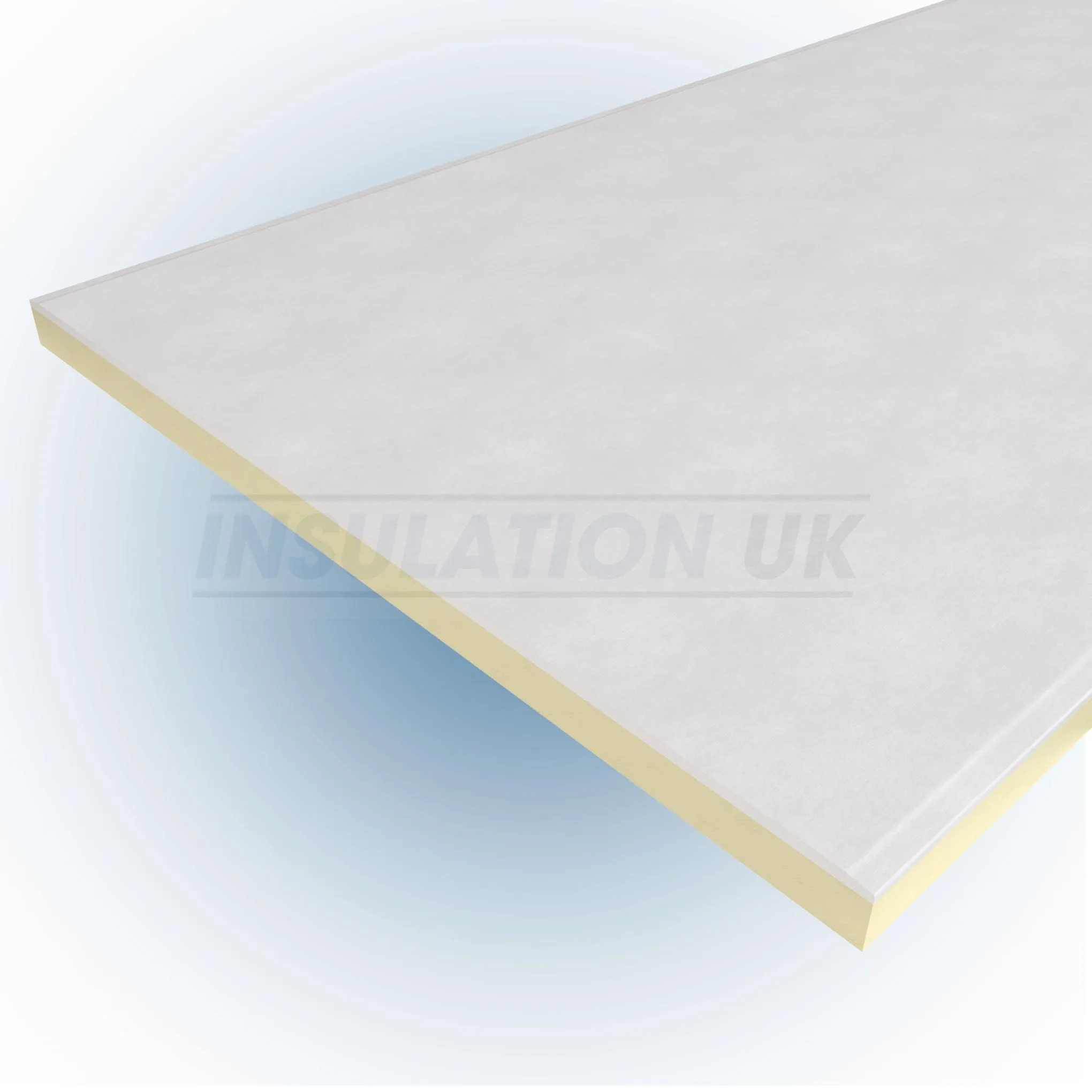

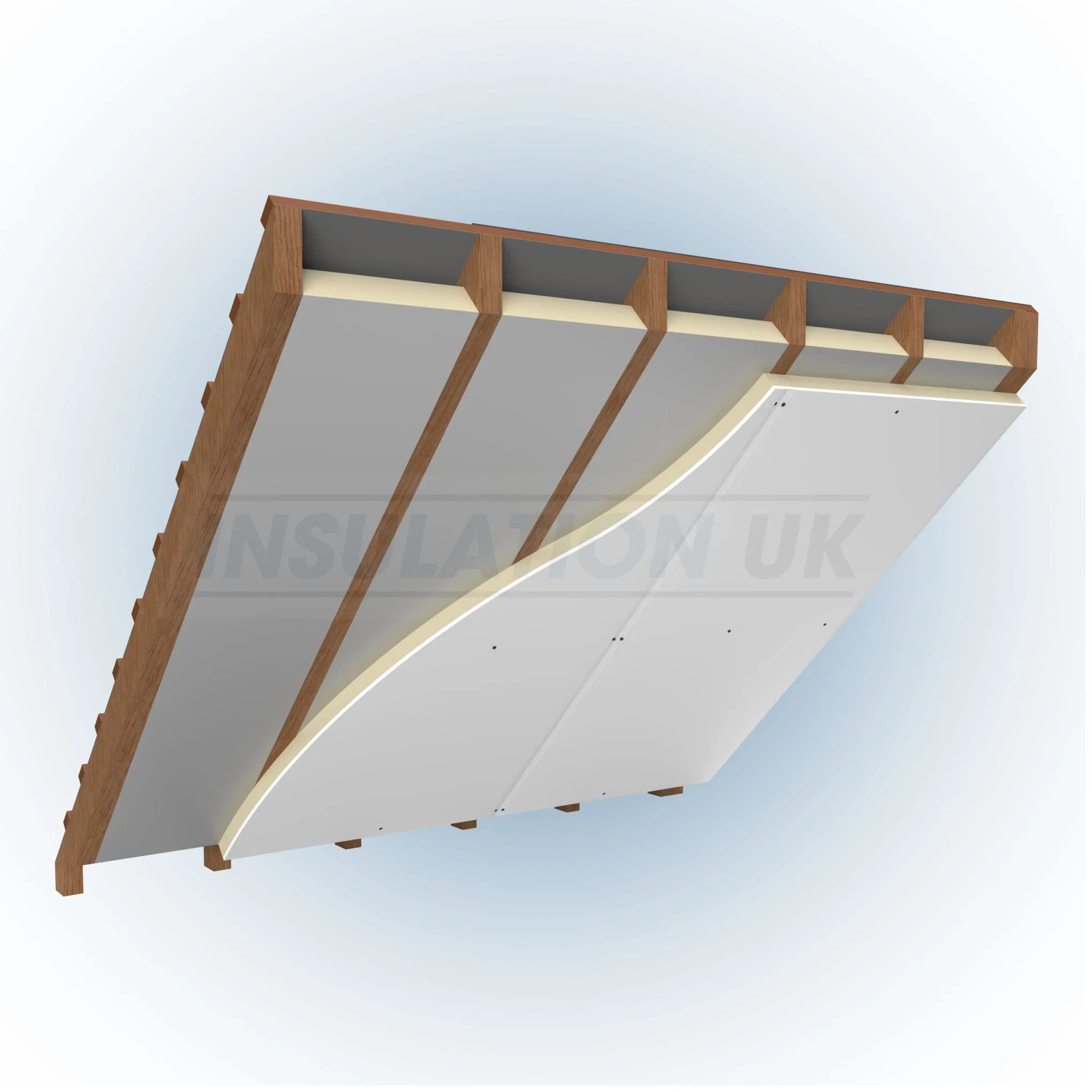

Tekwarm PIR Insulated Plasterboard is at the forefront of insulation technology, ingeniously integrating high-performance polyisocyanurate (PIR) insulation with a robust 12.5mm tapered edge plasterboard. Crafted for excellence, it provides a 2-in-1 solution for insulating and dry lining walls or roofs efficiently. This board is designed to meet the rigorous demands of modern construction, ensuring thermal efficiency, ease of installation, and adherence to sustainability standards.
Why Tekwarm PIR?
- Enhanced Thermal Efficiency: With a thermal conductivity of 0.022 W/mK, it sets new standards in insulation, significantly reducing energy consumption.

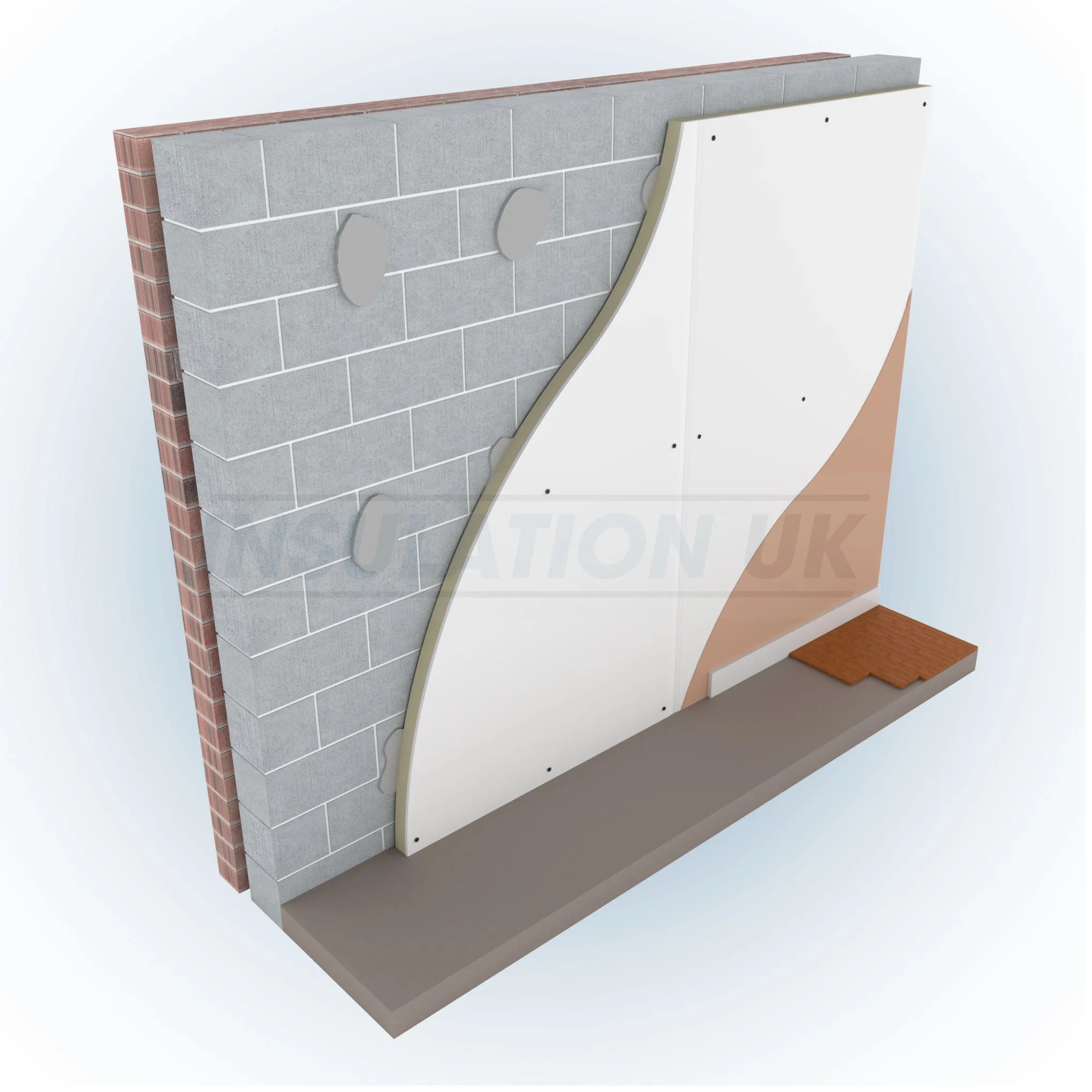

- Versatile Installation: Compatible with adhesive and mechanical fixing, it offers flexibility across diverse construction scenarios.
- Eco-Friendly Choice: Boasting zero ODP and a GWP of less than 5, it aligns with environmental preservation efforts.
- Time-Saving Installation: Its dual-functionality as insulation and plasterboard accelerates construction timelines.
Size Variants:
| Insulation Thickness (mm) | R Value (M²K/W) | Approx Weight (kg per board) | Nominal Overall Thickness (mm) |
|---|---|---|---|
| 20 | 1.04 | 24.28 | 32.5 |
| 25 | 1.20 | 25.78 | 37.5 |
| 30 | 1.44 | 26.25 | 42.5 |
| 40 | 1.90 | 27.08 | 52.5 |
| 50 | 2.34 | 27.94 | 62.5 |
| 60 | 2.79 | 28.80 | 72.5 |
| 70 | 3.25 | 30.10 | 82.5 |
| 80 | 3.70 | 30.53 | 92.5 |
| 90 | 4.16 | 31.50 | 102.5 |
| 100 | 4.61 | 32.35 | 112.5 |
General Specifications
| Specification | Details |
|---|---|

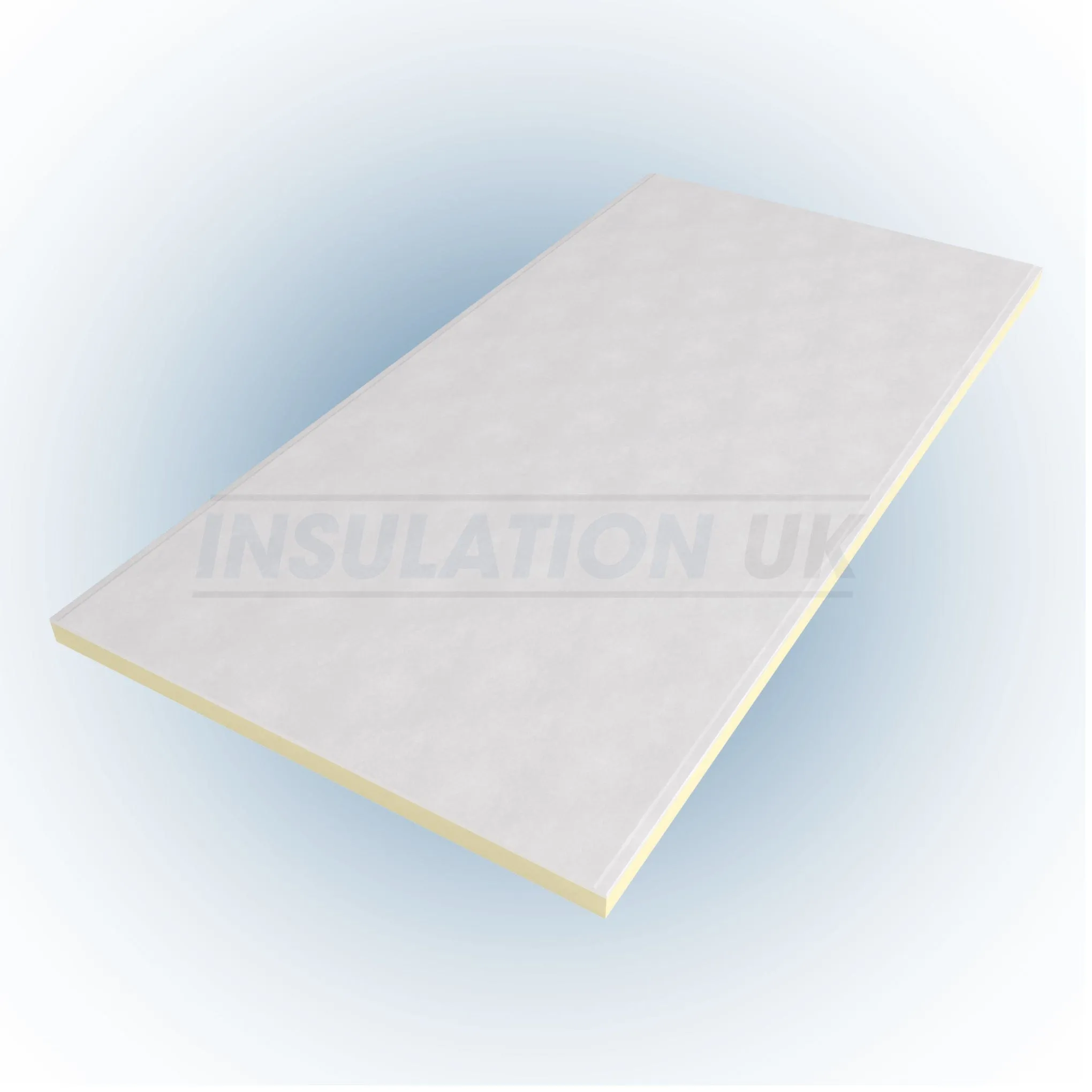

| Width | 1200mm |
| Length | 2400mm |
| Coverage | 2.88m² per board |
| Lambda (Thermal Conductivity) | 0.022 W/mK |
Installation & Handling
Tekwarm PIR Insulated Plasterboard is engineered for user-friendly installation, suitable for a variety of settings and capable of meeting high performance standards. Following the comprehensive installation guide ensures optimal functionality and compliance with building regulations.
Limitations & Safety
Intended for use in environments free from damp or continuous humidity, it incorporates a flame retardant additive for added safety. Please consult the data sheet for detailed handling instructions.
The Benefits of Using Insulated Plasterboard
Insulated plasterboard combines insulation and plasterboard into one efficient product, offering distinct advantages over separate installation:
-
Superior Energy Efficiency: The integrated insulation in insulated plasterboard minimizes thermal bridges, significantly improving a building's heat retention. This enhanced thermal efficiency is crucial for reducing energy consumption and heating costs, leading to a more sustainable and cost-effective living environment.
-
Space-Saving Design: Its composite structure saves valuable space, enabling thinner wall constructions without sacrificing insulation performance, which is particularly beneficial in renovations and small spaces.
-
Installation Efficiency: The all-in-one product streamlines the installation process, saving time and labour costs compared to fitting insulation and plasterboard separately.
-
Cost-Effectiveness: Initial costs are often offset by lower installation expenses and substantial long-term savings in energy bills due to the product's superior thermal efficiency.
-
Enhanced Building Performance: In addition to energy savings, insulated plasterboard can improve moisture management and sound insulation, enhancing indoor comfort.
-

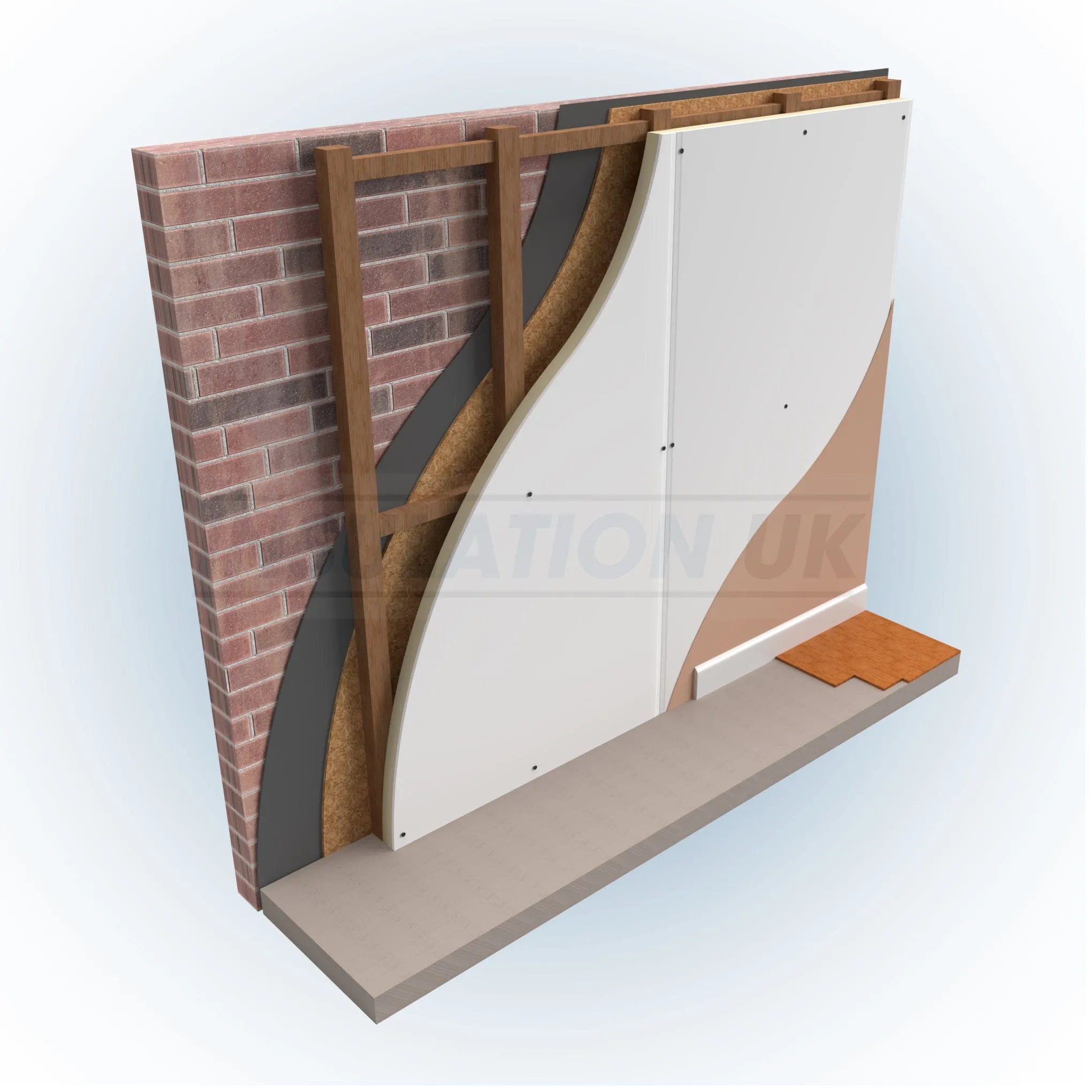

Flexibility in Thermal and Acoustic Comfort: When installing onto a stud wall, there's an opportunity to add extra insulation between the studs, boosting both thermal and acoustic performance. This additional layer can significantly enhance a building's energy efficiency and provide a quieter, more comfortable indoor environment. Whether aiming for higher thermal resistance (R-value) to keep heat in during winter and out during summer or seeking to minimise noise transmission between rooms, this added insulation maximises the wall’s performance.
Insulated plasterboard not only simplifies the construction process but also provides a versatile and effective way to enhance a building's thermal and acoustic comfort. This makes it an ideal choice for those looking to improve energy efficiency and indoor living conditions.
